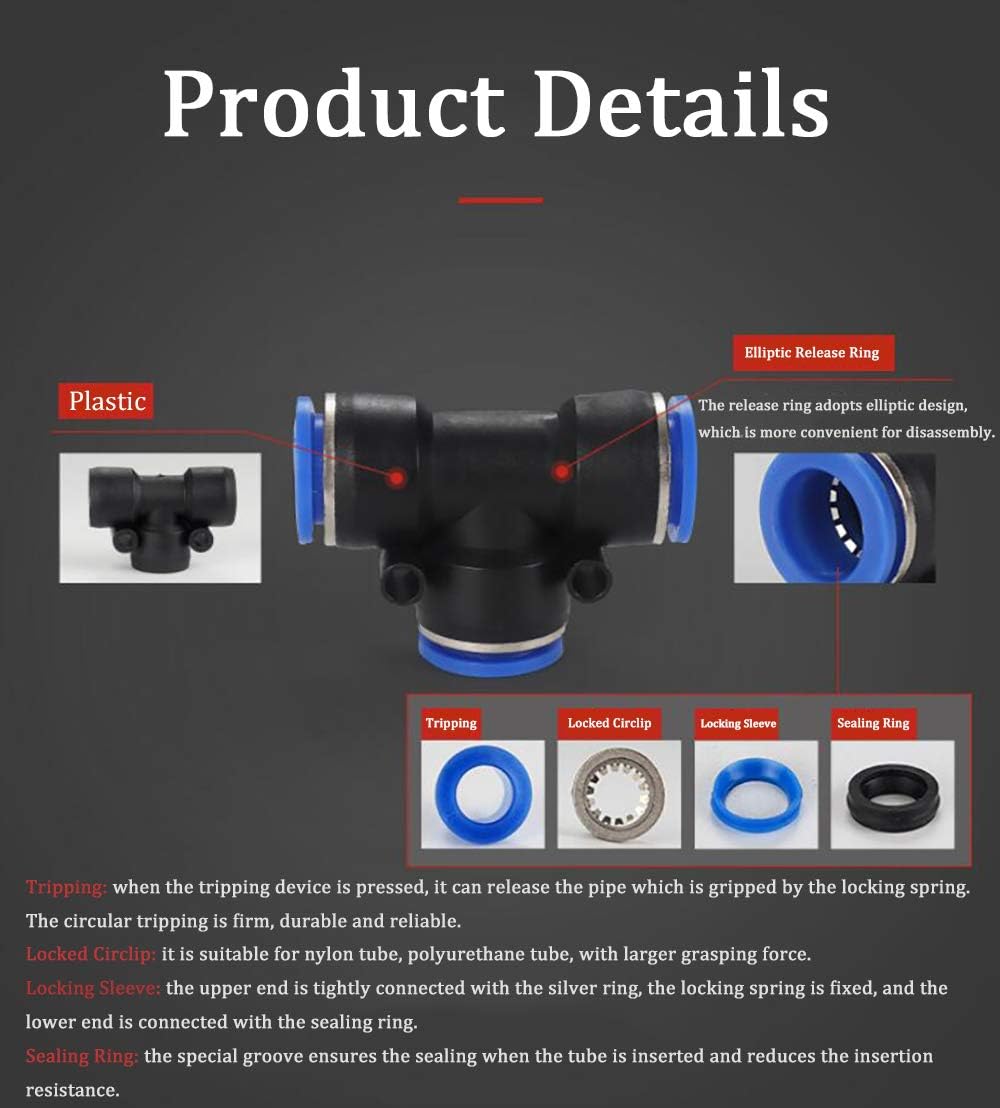

16mm Push Fitting, 5/8" OD Plastic to Connect Quick Fitting Tee Shaped, Air Line Lock Pneumatic Connector (10Pcs)

Specification: Product Name: Tee Fitting Model: PE-16 Size: 66mm x 45mm x 25mm/ 2.59” x 1.77” x 0.98” (L*W*H） Operating Pressure: 0-0.9MPa Limiting Pressure: 1.32MPa Operating Temperature: 0-60 Degree Celsius Three Tube Size (OD): 16mm(5/8”) Color: Black, Blue Material: Plastic Installation: 1. Cut the pipe flat without slope. 2. When inserting the pipe into the connector, it must be inserted into the end, otherwise leakage may occur. 3. After inserting, try to pull out the tube. If it can't be pulled out, it means it is connected. 4. When loosening the tube, first confirm that the tube is not under pressure and then press the end cap evenly to the bottom. Package Content: 10 x Tee Fittings

• Product Name: Push To Connect Tee Fitting; Model: PE-16; Three Tube Size: 16mm(5/8”)
• Operating Pressure: 0-0.9MPa; Max Working Pressure: 1.32MPa; Working Temperature: 0 - 60 Degrees Celsius
• Type: Push to connect tube connection on three end, and good release cap that can withstand greater and stronger pressure without tripping.
• Advantage: Wear-resistant, light weight, anti-crushing, anti-pressure, anti-corrosion, good sealing performance and long service life.
• Connect Tube Materials: Designed to connect polyethylene, nylon and PU tubes. Quick and simple installation.
