FPL Ambassador Patio Sliding Door Lock - Polished Brass (US3), Right Hand

From the FPL Classic Collection, the Ambassador patio sliding door lock is made from solid brass and available in an array of popular finishes. The Ambassador patio sliding door lock features a European half cylinder, thumbturn, and the 558-50 mortise mechanism. The mechanism is retracted by the thumbturn on the inside. The Ambassador style is also available in the keyed (locks/unlocks with a key on the outside and a thumbturn on the inside) and dummy (used on the inactive door when two sliding doors meet in the middle) functions. These items are listed separately. To open, press down on lever to disengage mechanism from strike, then use lever as a pull to slide your door open. When closed, locking the profile cylinder secures the door by keeping the lever from operating. Screw hole spacing: 8-43/64" center-to-center (c-t-c) Door thickness: 1-3/4" to 2-1/4" Plate width: 1-15/16" Plate length: 10-1/8" Backset: 50mm

• Solid brass construction for durability and quality | Popular polished brass finish | Right Hand
• Features a European half cylinder with thumbturn and FPL’s 558-50 mortise mechanism

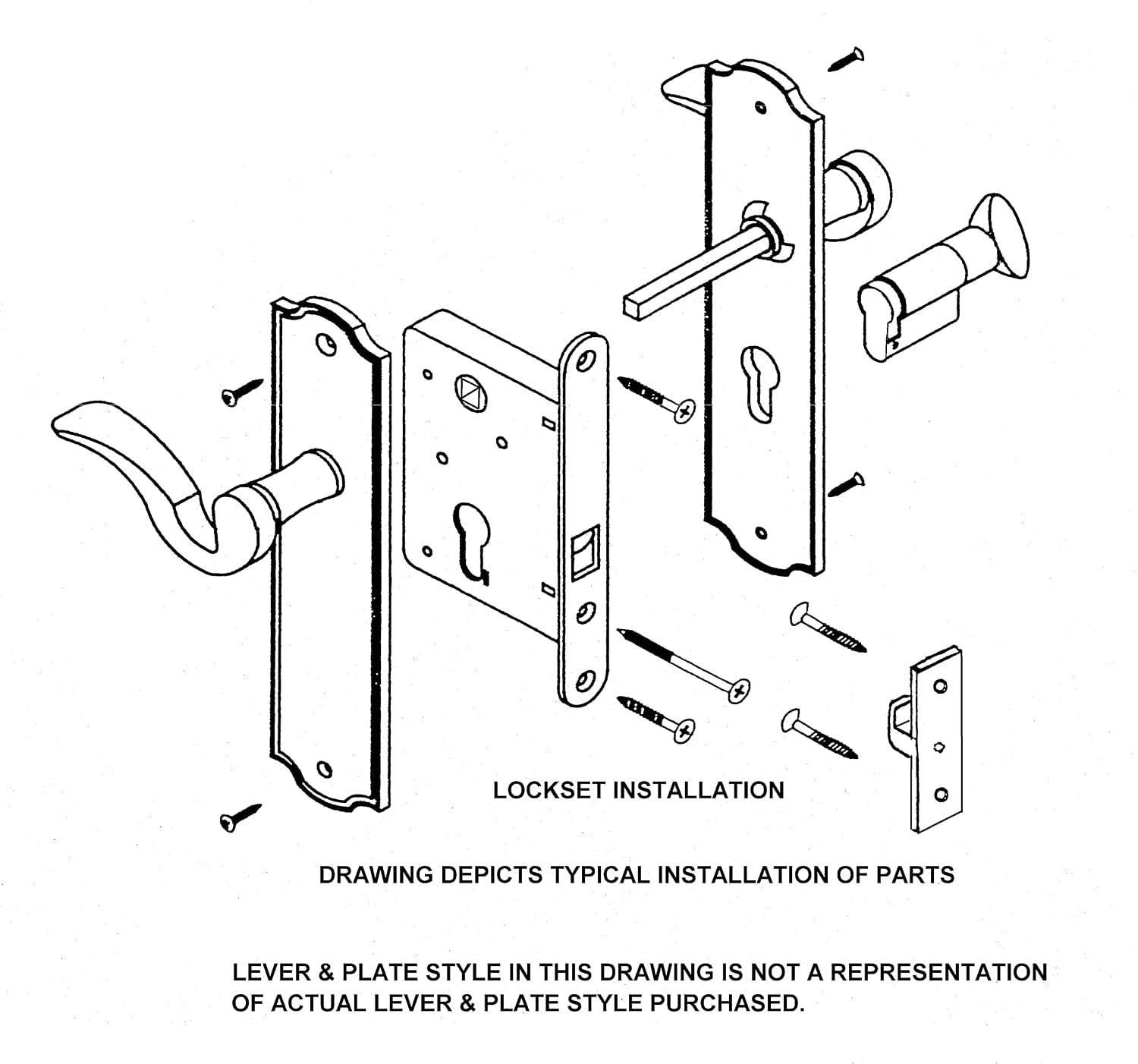

• Designed for easy installation, surface mount plates install with included finish-matched screws
• The mechanism is retracted by the thumbturn on the inside
• Complete set includes all necessary mounting hardware and accessories
