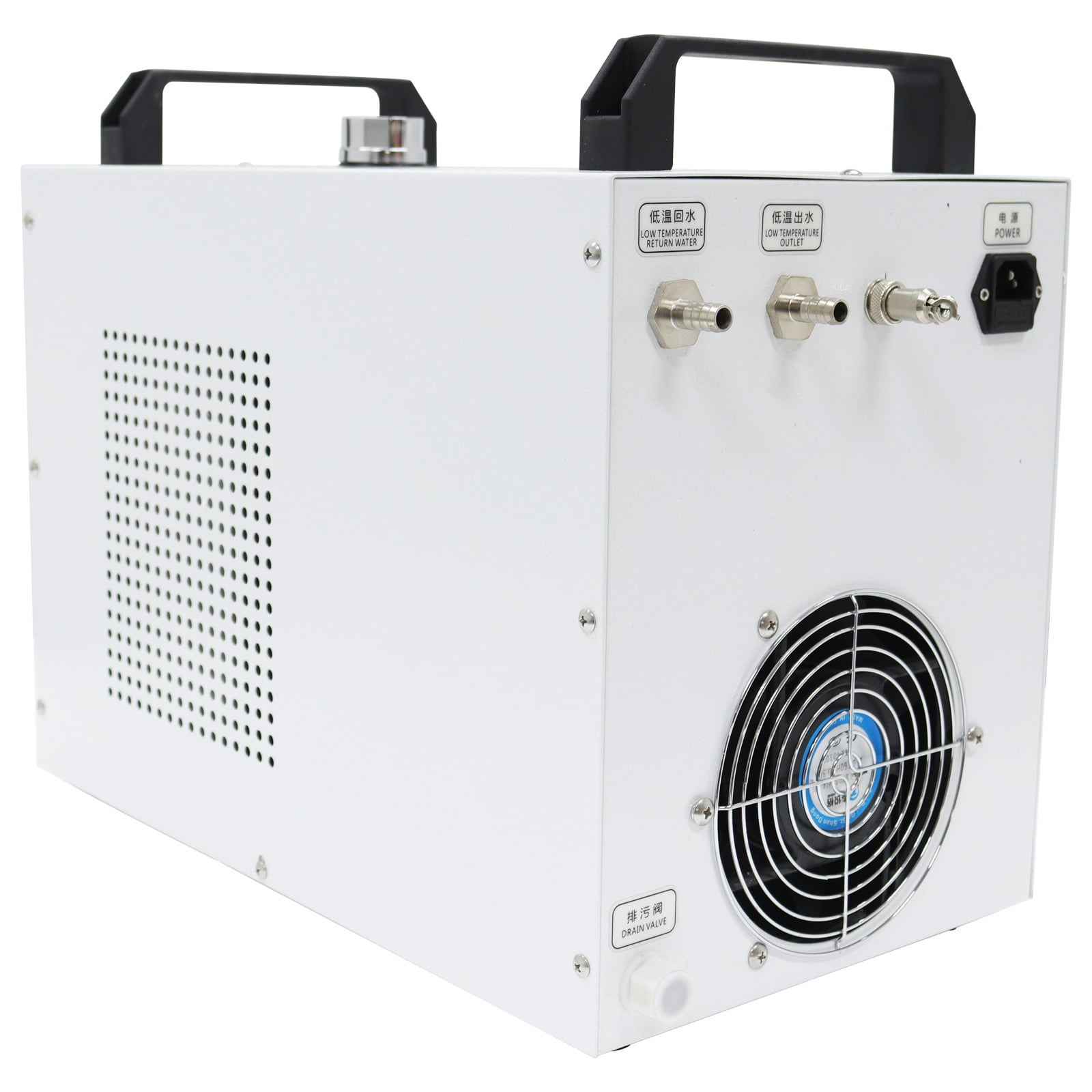

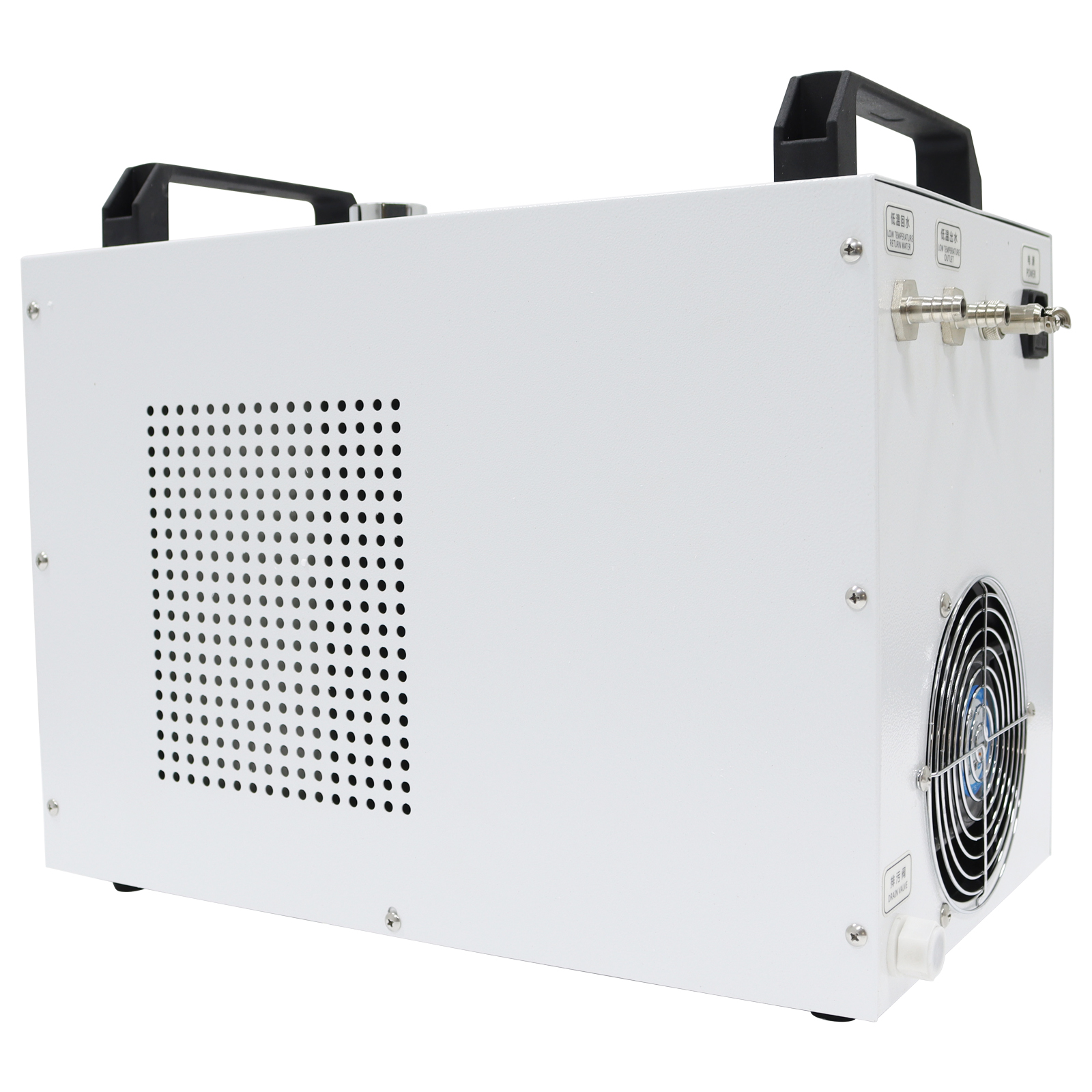

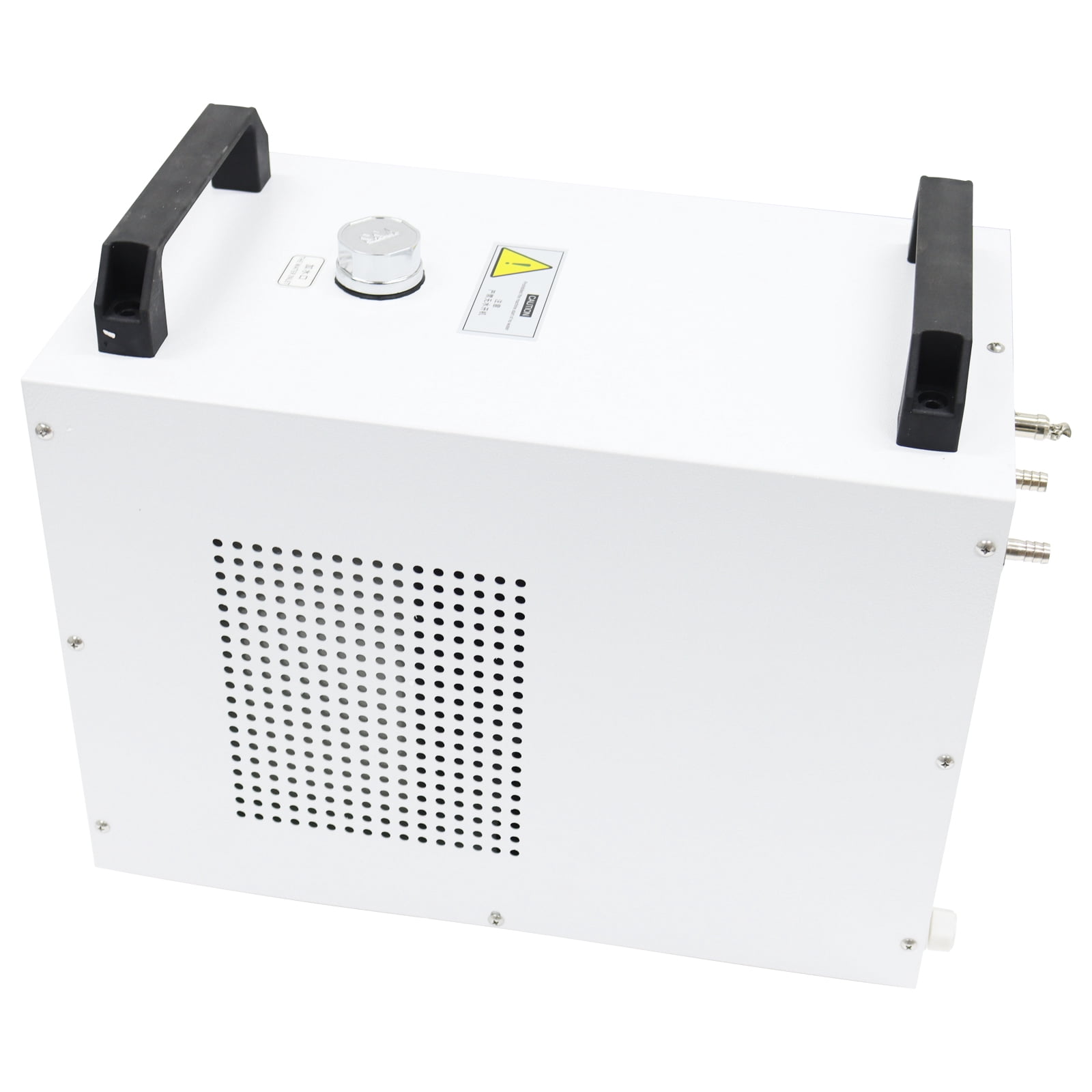

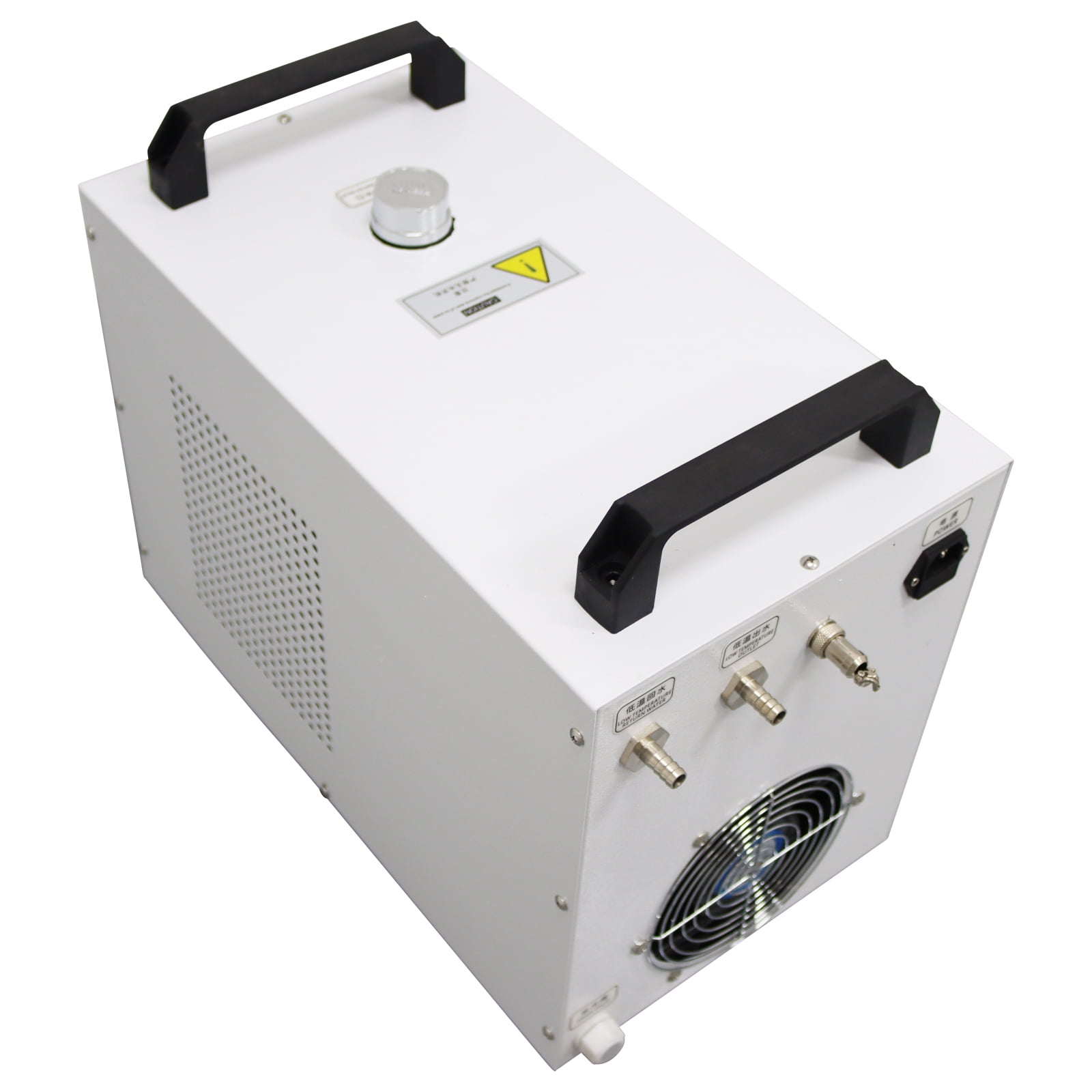

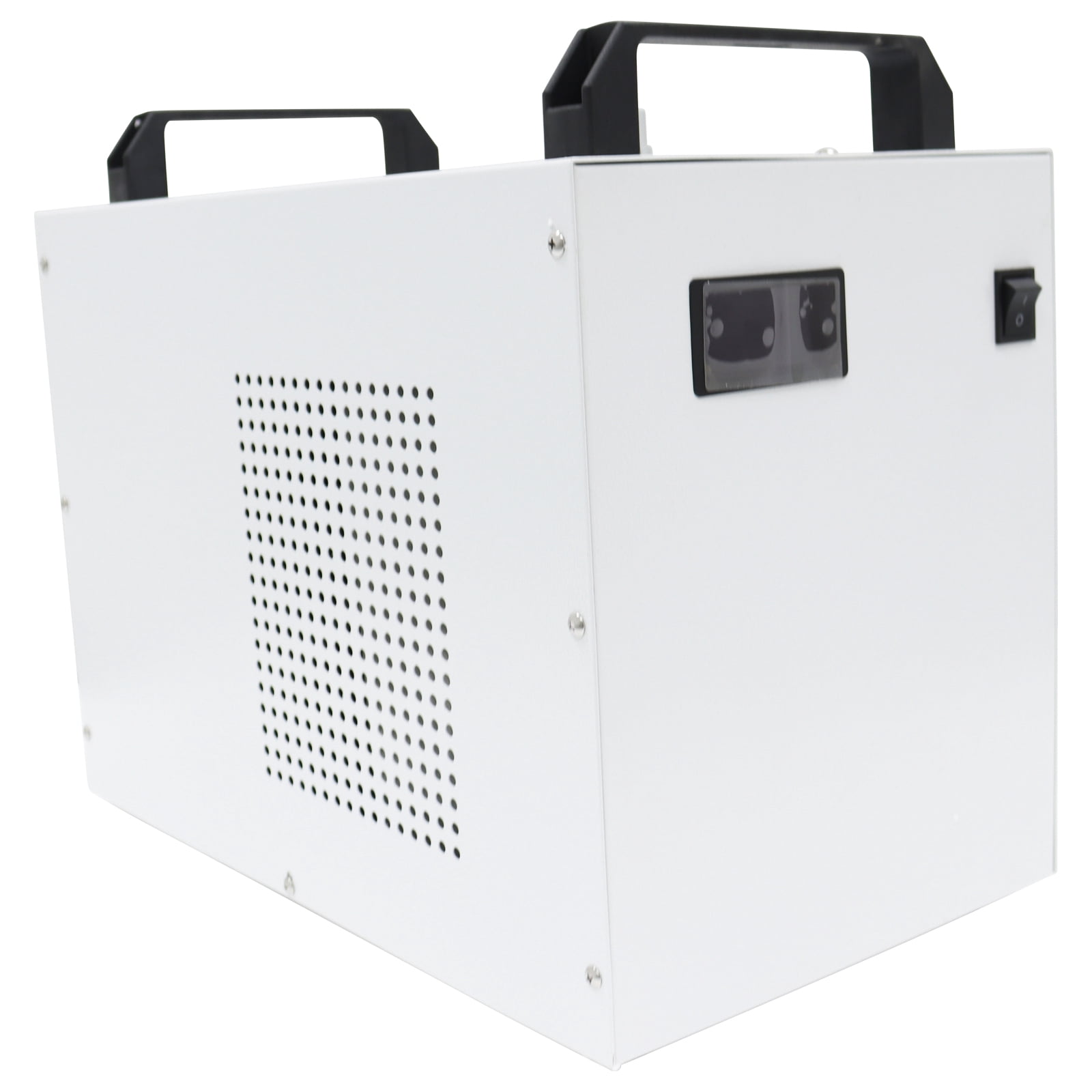

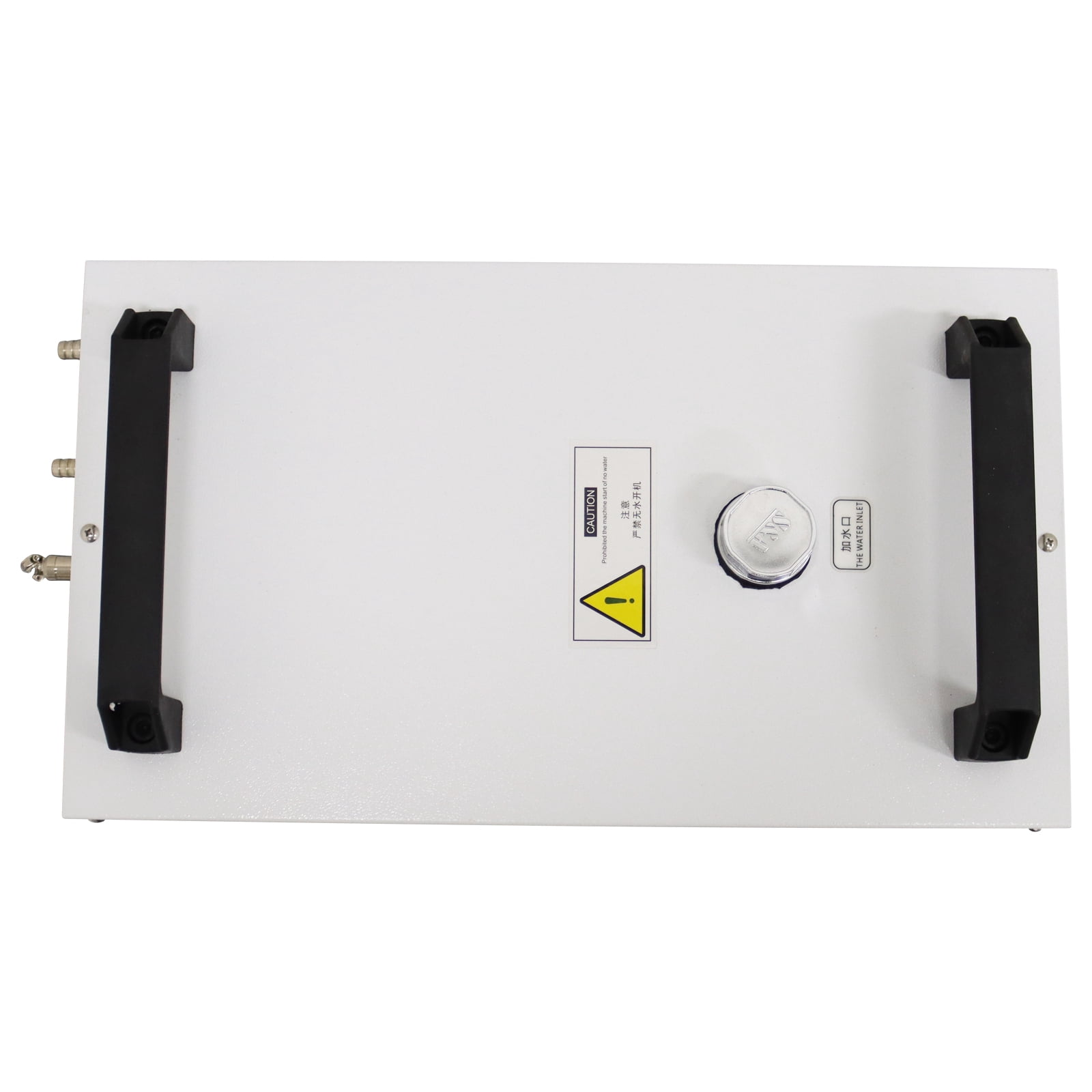

Industrial Water Chiller 110V Water Cooling Chiller Laser Chiller For CNC/Laser Engraver

<p>Introduction:<br>CW-3000 Series is professional cooling machine referring to international,advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery.<br>1. Specific disconnection alarm security protection.<br>2. Hermetic type water tank, water is available for a long time used.<br>3. Real-time temperature monitoring, accurate knowledge of heating devices working condition.<br>4. Professional air-cooled forced radiator with strong heat dissipating capacity and difficult to be blocked up.<br>5. Equipped with alarm output port to protect sensitive components quickly.<br>6. High cost performance, low failure rate.<br>SPECIFICATIONS<br>MODEL: CW-3000DG<br>Voltage: AC100-120V<br>Frequence: 50/60HZ<br>Current: 0.9A<br>Cooling: 50W/℃<br>Capacity: 9L<br>Inlet and outlet hold: Outside dimensions 10mm brass connector<br>Max.Lift: 10M<br>Max.Flow: 10L/min<br>Protection: Flow alarm<br>N.W: 9.5Kg<br>G.W: 12Kg<br>Dimensions: 47*27*37cm (L*W*H)<br>Packing dimensions: 59*39*48cm (L*W*H)<br>CAUTION<br>1. It is strictly forbidden to plug and run the cooler without feeding water.<br>2. Cooler should be placed in a well-ventilated, dry environment place and away from heat sources. Please keep at least 30cm from obstructions to the air outlet which is in the back of the cooler, and should leave at least 10cm between obstructions and air inlets of two sides. 3. The cooling water must be drained if the cooler is out of use for long time or before being transported.<br>4. To protect laser tubes , the radiator fan of cooler will suspend to work when water temperature is lower (about 10℃) , and it will restart to run when water temperature rises to higher (about 20℃).<br>The first Installation It is very simple to install this industrial cooling machine. The first time installation of the new machine can be carried out by following steps.<br>1. Open the package to check if the machine is intact and all the necessary accessories are completed.<br>2. Open the injection port, then add cooling water.<br>3. According to system conditions, connect the water inlet and outlet pipe well.<br>4. Plug in power, turn on the power switch. (Do not allow the water overflow)<br>5. Check the water level of the water tank again. (It should be 80-150cm from the surface of water to the injection port)<br>Item Included: 130114<br>Industrial Water Chiller 110V Water Cooling Chiller Laser Chiller For CNC/Laser Engraver</p>

• This professional industrial chiller has specific disconnection alarm security protection, and equipped with alarm output port to protect sensitive components quickly.
• The water cooler chiller has a professional forced air-cooled radiators, high heat dissipating capacity, and not easy to be blocked.
• Water cooling chiller can be used to cool low-power machines. Real-time temperature monitoring, accurate knowledge of heating devices working condition.
• Hermetic type water tank, water is available for a long time used. High cost performance, low failure rate.
• CW-3000 Series professional electric water cooling machine is suitable for small water-cooled cooling devices requested machinery.
